CVCF

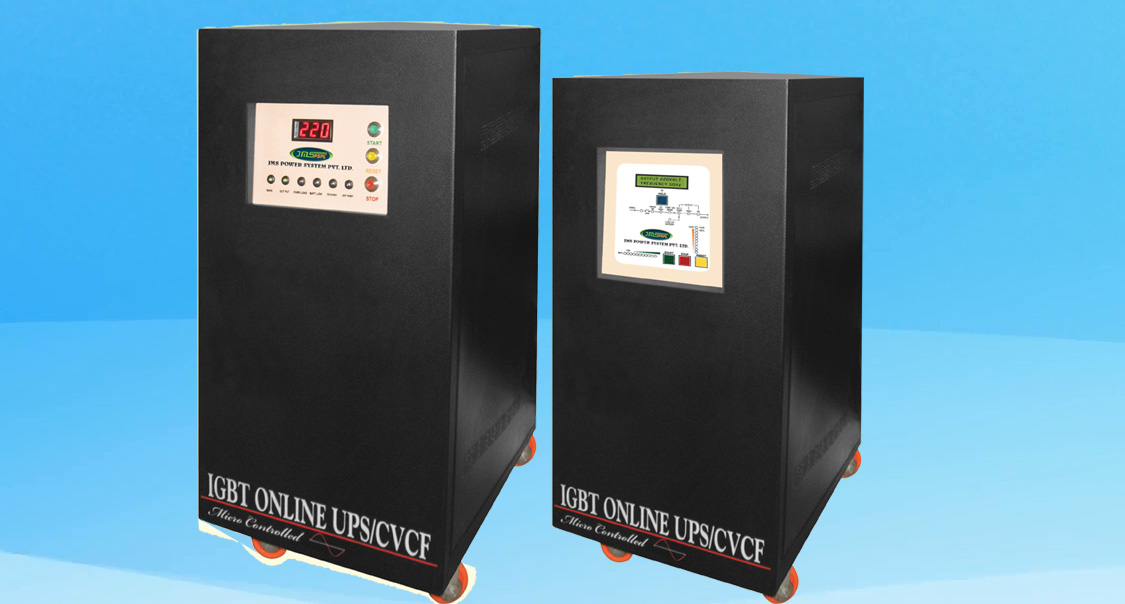

IGBT ON LINE UPS

CVCF

SPECIFICATION SINGLE PHASE THREE PHASE
Range 1 KVA to 20 KVA 5 KVA to 200 KVA
Input Voltage 160V AC tO 260V AC 330V AC tO 460V AC 30+N
Input Frequency 45Hz to 55Hz 45Hz to 55Hz
Protection Overload/Short cricuit, Battery Deep Discharge,
Battery Over Charge, Output Under/Over Voltage
Output Voltage 20/210/220/230/Volts 380/400/415/Volts 30+n
Voltage Regulation 1% FCor Input Variation and Step Load Change from
10% to 100% ±2% 30+N
Output Frequency 50Hz with accuracy <±0.1% (Optional 60Hz)
Wave Form sinewave with THD <3% on linear load
Power Factor 0.8 Lagging to Unity
Type Of Inverter DPS Controlled Double Update Sine Modulated PWM
Nominatio DC bus VOLTAGE 180/192 VOLTS DC 360/384 VOLTS DC
Inverter Efficiency Better that 982%
Overload 125% for 10 minutes, 300% for 10ms
Indications & Metering LED PANEL DISPLAYING Input/Output Voltage, Input/
Output Frequency. Battery Voltage, Output Load, Operating
Mode(Mains/Battery), Overload/Short Circuit, Battery Low
Self Diagnostic Check, Output Status(On/Off), Audio Alarm,
Battery Low and Overload
Charge Type IGBT Based Smart Charger
Back UP Time As per requirement
