Specifications of Servo Voltage Stabilizer

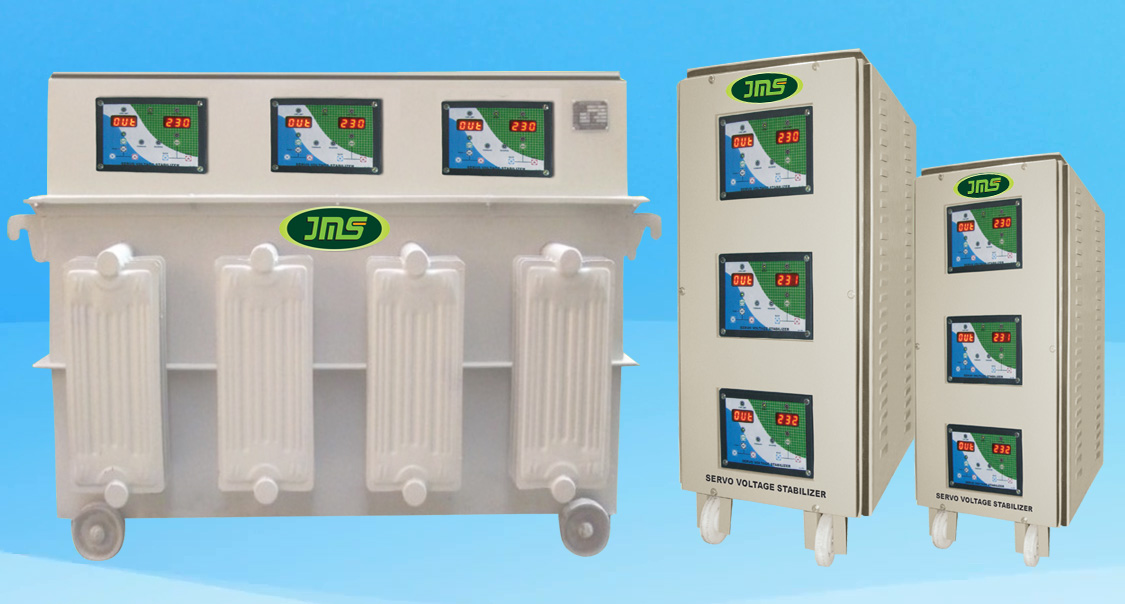

JMS SERVO STABILISER consists of a continuously variable auto transformer operated by an AC steps synchronous motor, a buck-boost transformer and IC based control circuit.The control circuit continuously monitors the output voltage and looks for error in the output and is immediately corrected by witching on the servo motor in appropriate direction in order to induce the required voltage through the series connected buck-boost transformer. As soon as the voltage reaches the desired level the motors is switched off. The High and Low indicators on the panel indicates the status of incoming mains supply. In the manual mode the voltage could be increased or decreased by pressing the switch in either director. The output adjustment facility has been provided adjust the output voltage as per requirement.
| STANDARD FEATURES | SINGLE PHASE | THREE PHASE |
|---|---|---|
| Capacity | 1 KVA to 20 KVA | 5 KVA to 600 KVA |
| Input Voltage Range | 160V-270 V / 160V-300V / 140V-300V | 360V-470 V / 340V-470 V / 300V-470V / 270V-470V |
| Nominal Output Voltage | 220/230V | 400/420V |
| Output Voltage Accuracy | ± 1% | ± 1% |
| Line Frequency Variation | 47Hz-53Hz | 47Hz-53Hz |
| Effect of Power Factor | None | None |
| Wave Form Distortion | None added | None added |
| Voltage Meter | Digital/Analogue | Digital/Analogue |
| Response Time | 10 m s. | 10 m s. |
| Speed of Correction | 20V / Sec. | 20V / Sec. |
| Inbuilt Frature | HV cut-off, LV cut-off, O/L trip, Time delay, Operating mode (auto/manual) | |
| Cooling | Air/Oil | Air/Oil |
| Efficiency | 98% | 98% |
| Protection | Automatic Switch-Off against: Under / Over-Voltage, Over-Load & Short - Circuit, Single Phasing | |
| Optional | Features Molded Case Circuit Breakers, Electronic Audio Alarm, Ampere Meter with CT's, By pass switch, RF Interference with filter, Digital Panel Meter, High/Low Voltage cut off. Salient Features |
